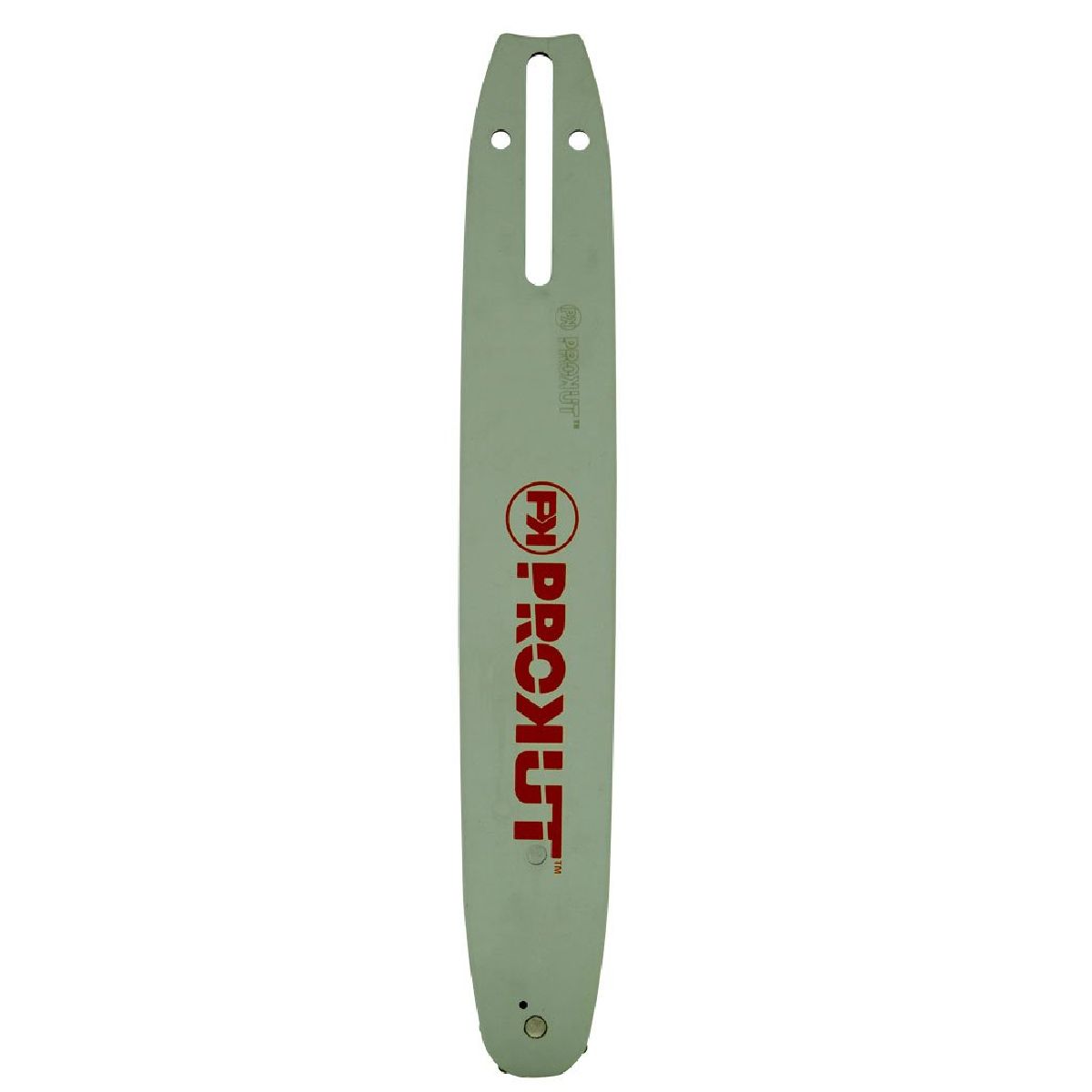

Prokut Sprocket Nose Guide Bar 14 #24 Ad
Brand: FORESTRY-G
SKU: GAFAD1424NL
BOPE Price
$40.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
Prokut Sprocket Nose Guide Bar 14 #24 Ad
Features
| MSE 200 and MSE 210 C-BQ models as a Narrow Cut option. Note: Please check your saw | |
| 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ, | |
| 201 TC-M, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS | |
| 193, MS 193 T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS | |
| 191, MS 191 T, MS 192, MS 192 C, MS 192C-E, MS 192 T, MS 192 TC, MS 192 T C-E, MS | |
| 171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS | |
| 020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS | |
| Fits: | STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER, |
| as a Narrow Cut option. | |
| .325" pitch chain. | |
| Fits: | Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F, OLE 300 models |
| prior to ordering, some of the above saw models were also released fitted with a | |
| C-BQ, MSE 200 models as a Narrow Cut option. Note: Please check your saw carefully | |
| MS 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 | |
| C, MS 201 T, MS210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, | |
| MS 191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 | |
| 180 C, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, | |
| Cut option. *Note Oil hole requires drilling. | |
| Fits: | Oleo-Mac* Power pruner models: EP 100, PP 250, PPX 250, PPX 270 models as a Narrow |
| Cut option. *Note Oil hole requires drilling. | |
| Fits: | Oleo-Mac 1500 models as a Narrow Cut option. |
| Teeth: | 7 Tooth sprocket nose |
| Recommended Saw Sizes: | 38 cc to 62 cc (2.3 to 3.8 cu. in.) |
| Gauge: | .043" |
| Drive Link Count: | 50 |
| with ramp-shaped depth gauges. | |
| Bar Mount Type: | AD |
| Chain / Cutter Type: | 24STN - semi-chisel chain with anti-kickback tie straps or 24SN - semi-chisel chain |
| Bar Type: | Consumer Laminated single rivet sprocket nose guide bar |
| Pitch: | 3/8" Low Profile |
| Length: (cm): | 35 cm |
| Length: (in): | 14" |
| Length: (in): | 14" |
| All PROKUT guide bars are reversible for longer life. | |
| cutting systems. | |
| Light-weight slim contour, for excellent manoeuvrability. | |
| Narrow cut (kerf) cutting systems require less power from the saw than standard | |
| Excellent rail strength for long life. | |
| Small radius nose helps reduce kickback. | |
| Features: | Consumer Laminated single rivet sprocket nose guide bar. |
| cutting systems | |
| • All PROKUT guide bars are reversible for longer life | |
| • Narrow cut (kerf) cutting systems require less power from the saw than standard | |
| • Light-weight slim contour, for excellent manoeuvrability | |
| • Excellent rail strength for long life | |
| • Small radius nose helps reduce kickback | |
| Features: | • Consumer Laminated single rivet sprocket nose guide bar |
| Replaces OEM: | OREGON 144MLEA074 |
| Replaces OEM: | OREGON 144MLEA074 |
| Single Rivet Sprocket Nose Guide Bar | |
| Description: | PROKUT 14" x 3/8" LP (Low Profile) x .043" x 50 DL, AD Mount, Consumer Laminated |
| carefully prior to ordering, some of the above saw models were also released fitted | |
| with a .325" pitch chain. | |
| Fits: | STIHL Pole Pruner models: HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT |
| 250 and HT-KM as a Narrow Cut option. Note: Please check your saw carefully prior | |
| to ordering, some of the above saw models were also released fitted with a 1/4" | |
| pitch chain. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Use with our semi-chisel chain loop part number GAF24STN050DL. Replaces our part |
| number OMK144MLEA074. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Use with our semi-chisel chain loop part number GAF24SN050DL or our semi-chisel |
| safety anti-kickback chain loop part number GAF24STN050DL. Replaces our part number | |
| OMK144MLEA074. | |
| Brand: | PROKUT, GA Forestry Accessories |
| Product Line: | Bar, guide bar, laminated guide bar, sprocket nose guide bar, |
