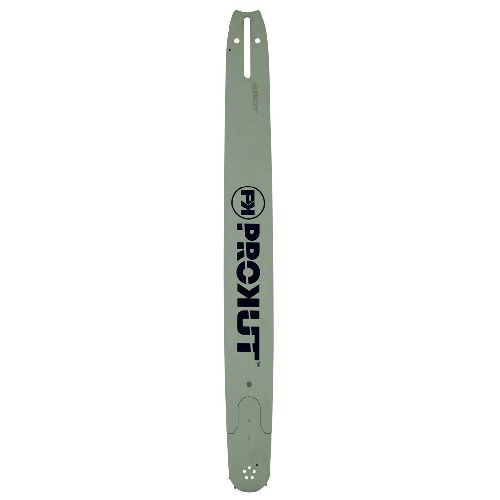

Prokut Sprocket Nose Guide Bar 20 #40 Cg
Brand: FORESTRY-G
SKU: GAFCG2040RS

BOPE Price
$81.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
Prokut Sprocket Nose Guide Bar 20 #40 Cg
Features
| 6700 models. | |
| 3400, 3700, 3800, 3900, 4000, 4200, 4400, 4900, 5000, 5200, 5400, 5500, 6000 and | |
| Fits: | Poulan / Poulan Pro 203, 245, 306, 306A, 360, 361, 375, 385, 395, 400, 446, 450, |
| Titan 50, Titan 57 and Titan 70 models. | |
| (SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models). | |
| 3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70 | |
| 800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle | |
| ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac | |
| MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570, | |
| 50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A. | |
| Fits: | McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle |
| and 800V models. | |
| Titan 50, Titan 57 and Titan 70 models. | |
| Fits: | John Deere 50AV, 50V, 51SV, 55EV, 55V, 55SV, 60V, 65, 65EV, 65SV, 66SV, 70V, 80EV |
| (SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models). | |
| 3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70 | |
| 800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle | |
| ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac | |
| MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570, | |
| 50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A. | |
| Fits: | McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle |
| CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000 and CS-8001 models. | |
| CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701, | |
| and 800V models. | |
| Fits: | Echo CS-60, CS-60S, CS-451, CS-452, CS-500, CS-501EVL, CS-510EVL, CS-550, CS-590, |
| Fits: | John Deere 50AV, 50V, 51SV, 55EV, 55V, 55SV, 60V, 65, 65EV, 65SV, 66SV, 70V, 80EV |
| CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000 and CS-8001 models. | |
| CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701, | |
| Fits: | Echo CS-60, CS-60S, CS-451, CS-452, CS-500, CS-501EVL, CS-510EVL, CS-550, CS-590, |
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
| Teeth: | 11 Tooth sprocket nose |
| Drive Link Count: | 70 |
| Bar Mount Type: | CG |
| Gauge: | .050" |
| Chain / Cutter Type: | 40S / Semi-Chisel or 40F / Full-Chisel |
| Bar Type: | Solid Professional Replaceable Sprocket Nose Guide Bar |
| Length: (cm): | 50 cm |
| Pitch: | 3/8" |
| Length: (in): | 20" |
| Length: (in): | 20" |
| • All PROKUT guide bars are reversible for longer life | |
| rails with excellent resistance to wear and chipping | |
| • Super tough chrome-moly steel provides superior bar-body strength and tough | |
| body | |
| overlapping ears | |
| • The long sprocket nose takes most of the abuse, and minimizes wear to the bars | |
| • Nose fastens with a single rivet, and is securely held by wide and strong | |
| Features: | • Solid professional replaceable sprocket nose guide bar |
| • All PROKUT guide bars are reversible for longer life | |
| rails with excellent resistance to wear and chipping | |
| body | |
| • Super tough chrome-moly steel provides superior bar-body strength and tough | |
| • The long sprocket nose takes most of the abuse, and minimizes wear to the bars | |
| overlapping ears | |
| • Nose fastens with a single rivet, and is securely held by wide and strong | |
| Features: | • Solid professional replaceable sprocket nose guide bar |
| Replaces OEM: | OREGON 200RNDD176 |
| Replaces OEM: | OREGON 200RNDD176 |
| Sprocket Nose Guide Bar | |
| Description: | PROKUT 20" x 3/8" x .050" x 70 DL, CG Mount, Solid Professional Replaceable |
| Fits: | Redmax G621AVS models. |
| Fits: | Skil 1641 models. |
| Fits: | Tanaka ECS-505, ECS-506, ECS-650 and ECS-655 models. |
| Fits: | Zenoah G621 and G621AVS models. |
| Standard Pack Quantity: | 1 |
| Please Note: | Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel |
| chain loop part number GAF40F070DL. For a semi-professional laminated multi-rivet | |
| sprocket nose guide bar option use our part number GAFCG2040PL. Replaces our part | |
| number OMK200RNDD176 | |
| nose guide bar, | |
| Standard Pack Quantity: | 1 |
| Please Note: | Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel |
| chain loop part number GAF40F070DL. For a semi-professional laminated multi-rivet | |
| sprocket nose guide bar option use our part number GAFCG2040PL. Replaces our part | |
| number OMK200RNDD176 | |
| Brand: | PROKUT, GA Forestry Accessories |
| Product Line: | Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket |
| nose guide bar, |
