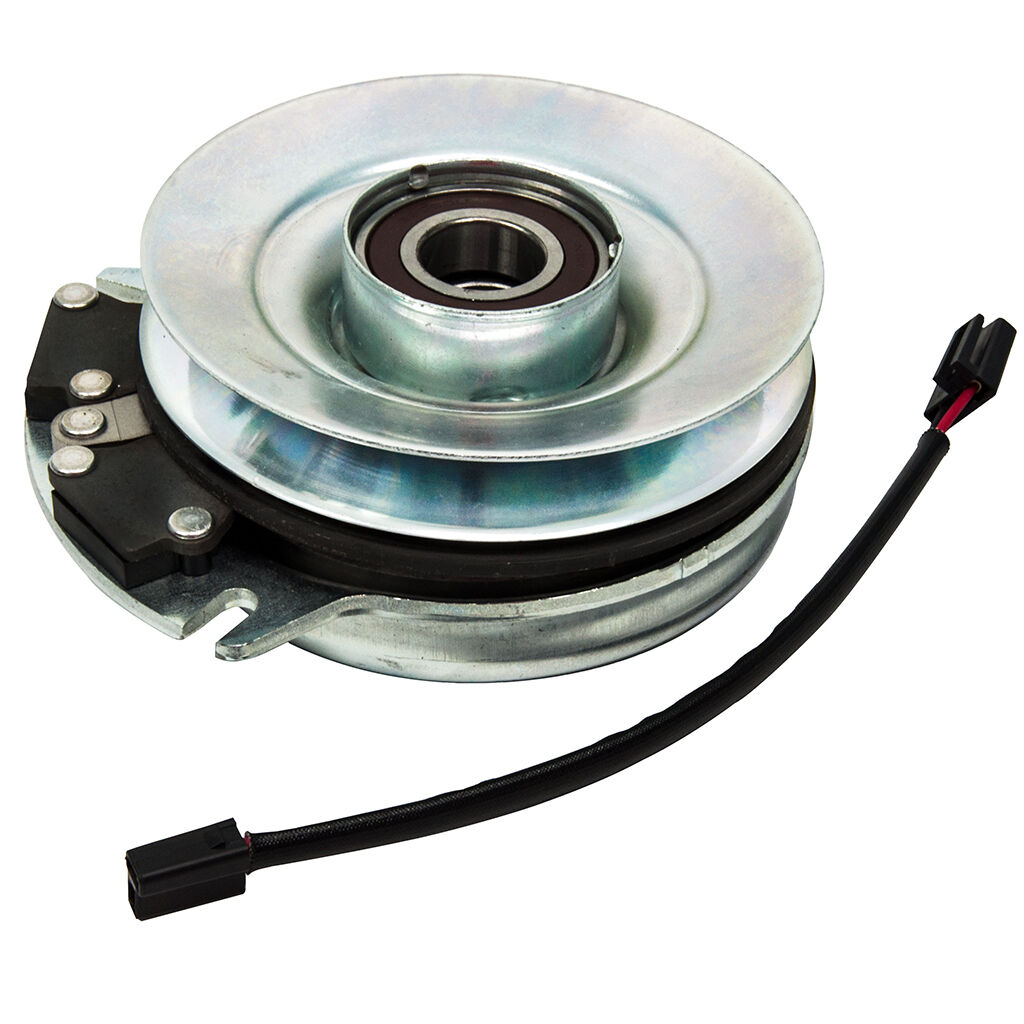

Electric Pto Clutch Assembly 1-1/8" Id X 6.25" Pulley
Brand: GASPARES
SKU: CLL7782
BOPE Price
$816.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
Electric Pto Clutch Assembly 1-1/8" Id X 6.25" Pulley
Features
| installing a new clutch. Failure to do so will void warranty. Warranty covers | |
| therefore the responsibility of the servicing dealer to test these items prior to | |
| correct equipment to test both the charging circuits and battery condition. It is | |
| specialist component that should only be fitted by a servicing dealer with the | |
| clutch adequately leading to premature failure. Electric PTO clutches are a | |
| battery and/or charging circuits not providing the correct current to operate the | |
| WHY? - The main causes of failures to electric clutches are due to faults with the | |
| Over the counter sales of clutches as spare parts should be discouraged. | |
| Standard Pack Quantity: | 1 |
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
| Fits: | Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002. |
| Features: | Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction. |
| Fits: | Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814. |
| Fits: | Selected BigDog ZTR models including X-Series models 931543, 931584. |
| Pulley Diameter : (mm) | 158.75 |
| Pulley Diameter : (inches) | 6.25 |
| Height: (mm) | 92.07 |
| Height: (inches) | 3 5/8 |
| Inside Diameter: (mm) | 28 |
| Warner 5218-65, 5218-213 | |
| Inside Diameter: (inches) | 1 1/8 |
| Toro 103-0501, 103-0665 | |
| Grasshopper: 388740 | |
| Hustler: 787366, 601311 | |
| Replaces OEM: | Bad Boy: 070-5035-00 |
| BigDog: 601311 | |
| Exmark: 103-0665, 1-631732, 1-641300 | |
| Description: | Electric PTO Clutch Assembly |
| normal use and does not cover damage or defect which results from alteration, | |
| accident, neglect, or improper clutch selection, installation, operation, or | |
| maintenance. Warranty covers faulty manufacture and/or workmanship. | |
| GA Spares stocks electric clutches manufactured by an OEM supplier. | |
| Brand: | Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner, |
| Product Line: | Electric Clutch, Clutch - Electric, |
| Description: | Electric PTO Clutch Assembly |
| Replaces OEM: | Bad Boy: 070-5035-00 |
| BigDog: 601311 | |
| Exmark: 103-0665, 1-631732, 1-641300 | |
| Grasshopper: 388740 | |
| Hustler: 787366, 601311 | |
| Toro 103-0501, 103-0665 | |
| Warner 5218-65, 5218-213 | |
| Inside Diameter: (inches) | 1 1/8 |
| Inside Diameter: (mm) | 28 |
| Height: (inches) | 3 5/8 |
| Height: (mm) | 92.07 |
| Pulley Diameter : (inches) | 6.25 |
| Pulley Diameter : (mm) | 158.75 |
| Fits: | Selected BigDog ZTR models including X-Series models 931543, 931584. |
| Fits: | Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814. |
| Fits: | Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002. |
| Features: | Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction. |
| Standard Pack Quantity: | 1 |
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
| Over the counter sales of clutches as spare parts should be discouraged. | |
| WHY? - The main causes of failures to electric clutches are due to faults with the | |
| battery and/or charging circuits not providing the correct current to operate the | |
| clutch adequately leading to premature failure. Electric PTO clutches are a | |
| specialist component that should only be fitted by a servicing dealer with the | |
| correct equipment to test both the charging circuits and battery condition. It is | |
| therefore the responsibility of the servicing dealer to test these items prior to | |
| installing a new clutch. Failure to do so will void warranty. Warranty covers | |
| normal use and does not cover damage or defect which results from alteration, | |
| accident, neglect, or improper clutch selection, installation, operation, or | |
| maintenance. Warranty covers faulty manufacture and/or workmanship. | |
| GA Spares stocks electric clutches manufactured by an OEM supplier. | |
| Brand: | Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner, |
| Product Line: | Electric Clutch, Clutch - Electric, |
| Description: | Electric PTO Clutch Assembly |
| Replaces OEM: | Bad Boy: 070-5035-00 |
| BigDog: 601311 | |
| Exmark: 103-0665, 1-631732, 1-641300 | |
| Grasshopper: 388740 | |
| Hustler: 787366, 601311 | |
| Toro 103-0501, 103-0665 | |
| Warner 5218-65, 5218-213 | |
| Inside Diameter: (inches) | 1 1/8 |
| Inside Diameter: (mm) | 28 |
| Height: (inches) | 3 5/8 |
| Height: (mm) | 92.07 |
| Pulley Diameter : (inches) | 6.25 |
| Pulley Diameter : (mm) | 158.75 |
| Fits: | Selected BigDog ZTR models including X-Series models 931543, 931584. |
| Fits: | Selected Hustler ZTR models including Super Z model 927046, Super Z XR7 model 927996, X-One models 931675EX, 930511EX, 930545EX, Hustler Z models 727053, 926881, 927814. |
| Fits: | Selected Toro 72" cut Z286E Z master (model 74241) fitted with 26hp Kohler engines built between 2001 & 2002. |
| Features: | Manufactured by an OEM supplier. Uses 5/8" V-belt ("B" or 69 series belt). Operates in a clockwise direction. |
| Standard Pack Quantity: | 1 |
| Please Note: | IMPORTANT INFORMATION ON ELECTRIC CLUTCHES |
| Over the counter sales of clutches as spare parts should be discouraged. | |
| WHY? - The main causes of failures to electric clutches are due to faults with the | |
| battery and/or charging circuits not providing the correct current to operate the | |
| clutch adequately leading to premature failure. Electric PTO clutches are a | |
| specialist component that should only be fitted by a servicing dealer with the | |
| correct equipment to test both the charging circuits and battery condition. It is | |
| therefore the responsibility of the servicing dealer to test these items prior to | |
| installing a new clutch. Failure to do so will void warranty. Warranty covers | |
| normal use and does not cover damage or defect which results from alteration, | |
| accident, neglect, or improper clutch selection, installation, operation, or | |
| maintenance. Warranty covers faulty manufacture and/or workmanship. | |
| GA Spares stocks electric clutches manufactured by an OEM supplier. | |
| Brand: | Bad Boy - Non Genuine, BigDog - Non Genuine, Exmark - Non Genuine, Grasshopper - Non Genuine, Hustler - Non Genuine, Toro - Non Genuine, Warner, |
| Product Line: | Electric Clutch, Clutch - Electric, |
