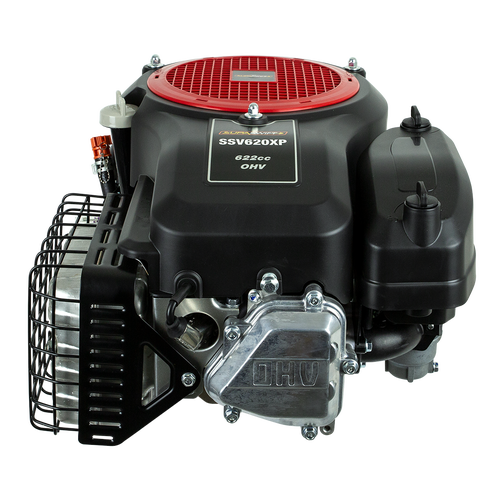

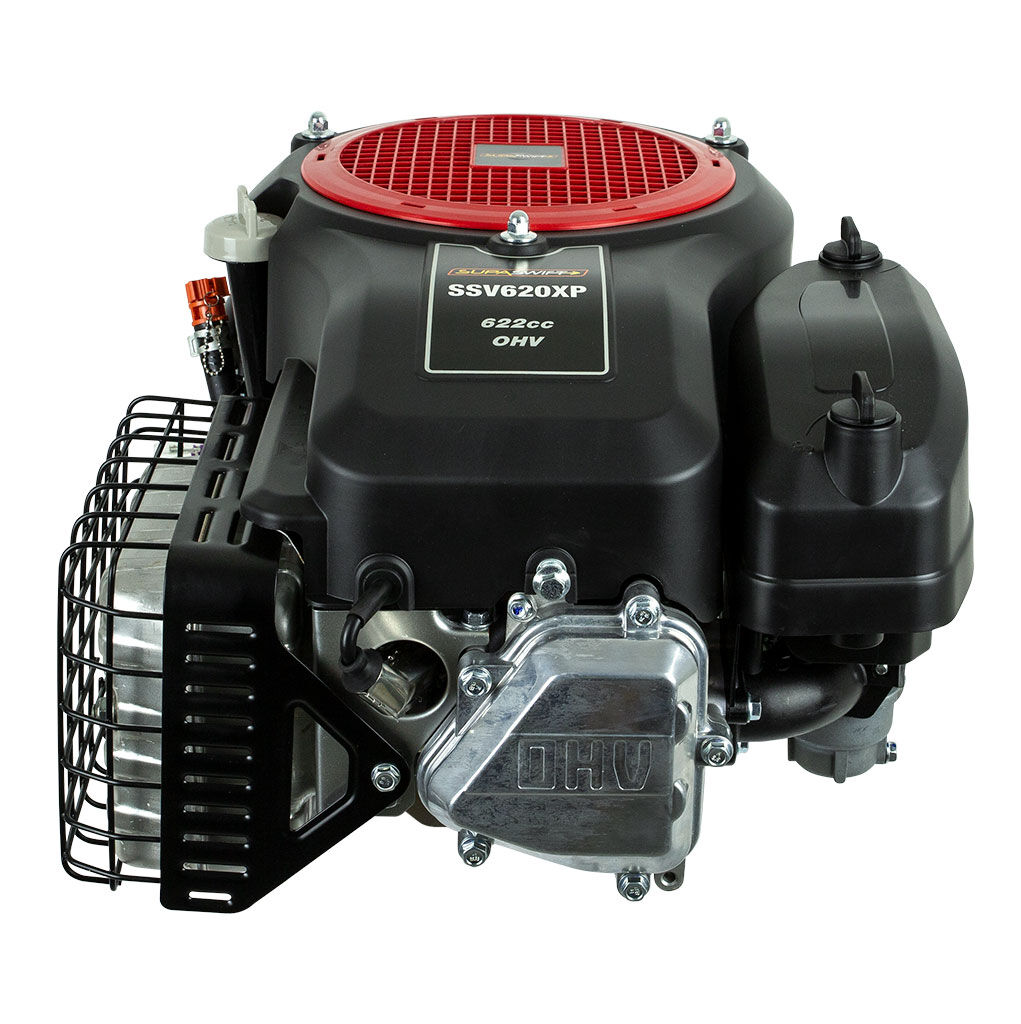

Supaswift Engine Ssv620xp Vertical Shaft
Brand: LONCIN
SKU: ENG8551

BOPE Price
$1,149.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
Supaswift Engine Ssv620xp Vertical Shaft
Features
| Product Line: | Engine, Four Stroke Engine, SupaSwift Engine, 4-Stroke Engine, |
|---|---|
| Brand: | SupaSwift, |
| This engine does not come with a fuel tank. | |
| SAE J1349 at 3,600 rpm (Net Power) and at 2,600 rpm (Max. Net Torque). Please Note: | |
| the net power output tested on a production engine and measured in accordance with | |
| Please Note: | Specifications subject to change without notice. The power rating of this engine is |
| Standard Pack Quantity: | 1 |
| International Standard: | Conforms to EU5. |
| Dry Weight: (kg) | 33 kg. |
| Dry Weight: (lb) | 72.75 lb. |
| Dimensions L x W x H: | 470 mm x 405 mm x 400 mm. |
| Exhaust/Muffler: | Yes, includes muffler and guard. |
| Fuel Filter: | No. |
| Air Filter: | Dual element paper and foam. |
| Fuel: | Unleaded (minimum of 90 octane). |
| Fuel Capacity: | Please Note: This engine does not come with a fuel tank. |
| Oil Capacity: | 1.8 litres. |
| Oil Filter: | Yes. |
| Oil Grade: | SAE 10W/30. |
| Lubrication: | Splash and pressure lubrication system. |
| Spark Plug Gap: | 0.6 - 0.8 mm. |
| Valve Clearance: | Inlet Valve: 0.10 - 0.15 mm. / Exhaust Valve: 0.10 - 0.15 mm. |
| Charging System: | 15 amp. |
| Spark Plug: | NGK - BPR6ES. |
| Ignition: | Transistorised magneto ignition. |
| Choke: | Manual. |
| Starter: | Electric start. |
| Carburettor: | Butterfly type. |
| Cooling: | Forced air-cooled. |
| Governor: | Centrifugal mass type. |
| PTO Shaft Rotation: | Anti-clockwise (viewed from the PTO side). |
| PTO Shaft Type: | A (1" or 25.4 mm, parallel keyway). |
| Crankshaft Diameter: (mm) | 25.4 mm. |
| Crankshaft Diameter: (inches) | 1". |
| Crankshaft: | Forged and balanced crankshaft. |
| Engine (cc): | 622 cc. |
| Horsepower (@3,600 rpm): | 17.0 hp (Measured in accordance with SAE J1349). |
| Net Torque: | 40 nm @ 2600 rpm (Measured in accordance with SAE J1349). |
| Net Power: | 17.0 hp [12.5 kW] @ 3600 rpm (Measured in accordance with SAE J1349). |
| Compression Ratio: | 8.5:1. |
| Cylinder: | Single cylinder with cast -iron cylinder sleeve. |
| Bore x Stroke: | 96mm x 86mm. |
| Displacement: | 622 cc. |
| petrol engine. | |
| Type: | Forced air-cooled, single cylinder OHV, vertical shaft, normally aspirated 4-stroke |
| Engine: | SupaSwift SSV620XP. |
| Suitable for ride-on mowers. | |
| Conforms to Euro 5 Standards. | |
| Proven reliability. | |
| Oil filter. | |
| OHV design. | |
| Metal camshaft. | |
| Forged and carefully balanced crankshaft. | |
| Features: | Cast-Iron cylinder sleeve. |
| section on our web site or contact our friendly sales team. | |
| conditions including all limitations and exclusions please refer to the warranty | |
| Warranty: | 3 Years domestic, 90 days commercial. For further details on our warranty terms and |
| to provide many years of trouble free service. | |
| shaft, cast-iron cylinder liner, OHV design and an oil filter this engine is ready | |
| ride-on lawn mowers. With premium features such as a forged crankshaft. metal cam | |
| 4-stroke petrol engine suitable for a variety of outdoor power equipment including | |
| Editorial: | The SupaSwift SSV620XP is a durable and reliable 12.5 kW single cylinder OHV |
| 4-Stroke Petrol Engine | |
| Description: | SupaSwift SSV620XP, 17.0 hp, 12.5 kW, 622 cc Single Cylinder OHV Vertical Shaft |
