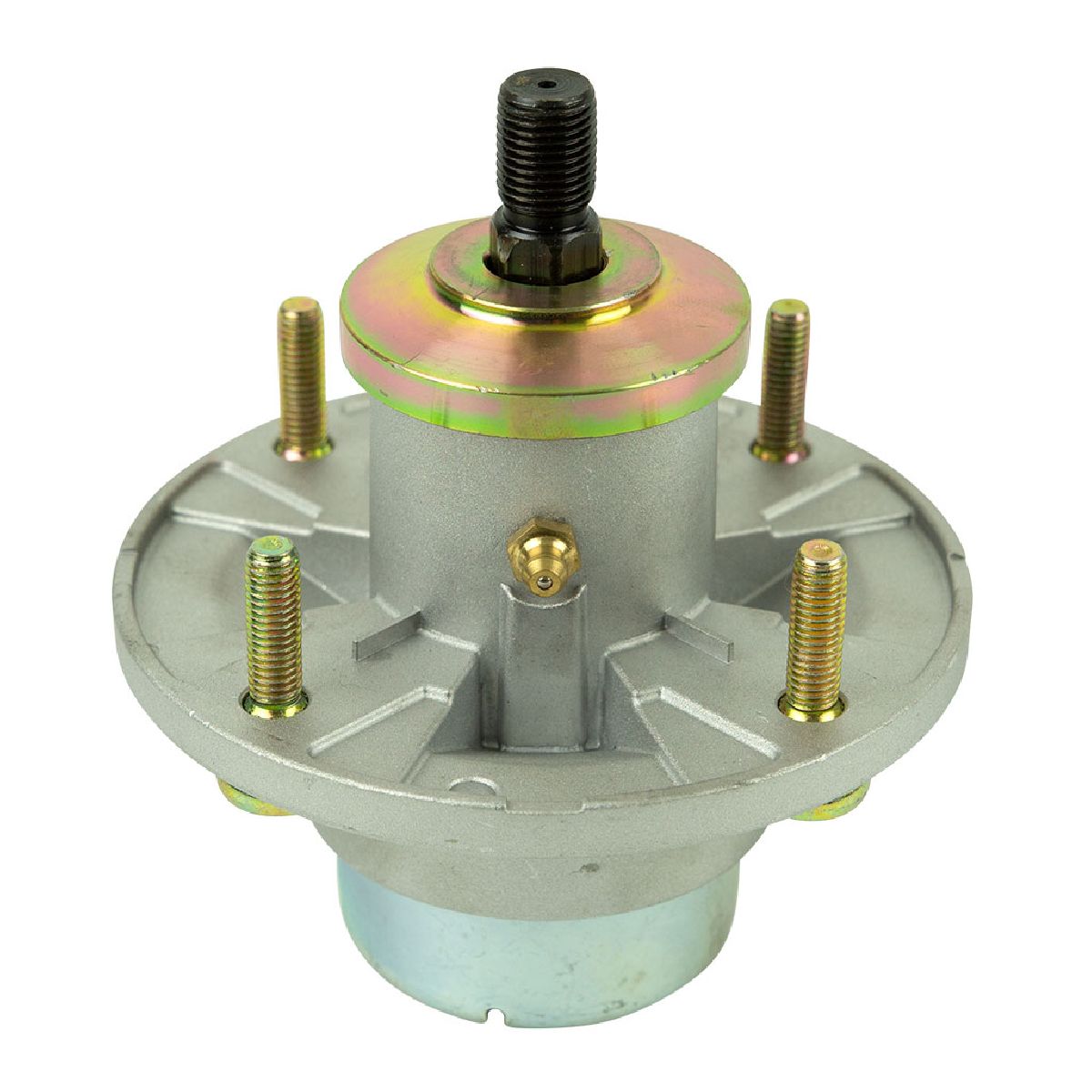

John Deere Spindle Assembly
Brand: GASPARES
SKU: JAS8504
BOPE Price
$107.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
John Deere Spindle Assembly
Features
| Z535M and Z540M zero turn radius (ZTR) ride-on models. | |
| X570, X590 ride-on lawn mower models and Residential ZTrak series Z375R, Z525E, | |
| including but not limited to Select Series X380, X384 (4WS), X390, X580, X584, | |
| Fits: | 54" (1372 mm) cut John Deere selected models fitted with Accel (54A) deep decks |
| Product Line Notes: | 3 spindle assemblies required for 48" cut (48A) Accel deep decks. |
| and Z540M zero turn radius (ZTR) ride-on models. | |
| ZTrak series Z355E (models with serial numbers 050001 onwards), Z355R, Z525E, Z535M | |
| X570, X584, X590, Signature Series X730 ride-on lawn mower models and Residential | |
| including but not limited to Select Series X350, X380, X384 (4WS), X390, X394, | |
| Fits: | 48" (1220 mm) cut John Deere selected models fitted with Accel (48A) deep decks |
| turn radius (ZTR) ride-on models. | |
| Product Line Notes: | 2 spindle assemblies required for 42" cut (42A) Accel deep decks. |
| numbers 080001 onwards) and Z345R (models with serial numbers 080001 onwards) zero | |
| mower models and Residential ZTrak series Z335E, Z335M, Z345M (models with serial | |
| including but not limited to Select Series X350, X354 (4WS), X370 ride-on lawn | |
| Fits: | 42" (1067 mm) cut John Deere selected models fitted with Accel (42A) deep decks |
| Pulley Nut Thread Size: 9/16". | |
| Length: (mm): | 146.05 mm |
| Thread Size: | Blade Mounting Bolt Thread Size: 12mm x 1.75mm. |
| Length: (in): | 5 3/4" |
| Deck (mm) | 1067 mm, 1220 mm, 1372 mm Cut |
| Deck (inches) | 42", 48", 54" Cut |
| Replaces OEM: | John Deere AM144608 |
| Deck (cm) | 106.7 cm, 122 cm, 137.2 cm Cut |
| Accel Deep Decks. | |
| Description: | Non-Genuine John Deere 42", 48", 54" Cut Spindle Assembly To Suit 42A, 48A, 54A |
| Product Line Notes: | 3 spindle assemblies required for 54" cut (54A) Accel deep decks. |
| Standard Pack Quantity: | 1 |
| Footnote: | When installing new spindle assemblies, pulley nuts, (if already fitted) must be |
| checked and correctly tightened. All spindle assemblies are sold as singles, order | |
| the quantity required to make up a set. | |
| Brand: | John Deere Non-Genuine, |
