Walbro K1-wyta Spiral Diaphragm Upgrade Kit
Brand: GASPARES
SKU: K1-WYTA
BOPE Price
$85.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.

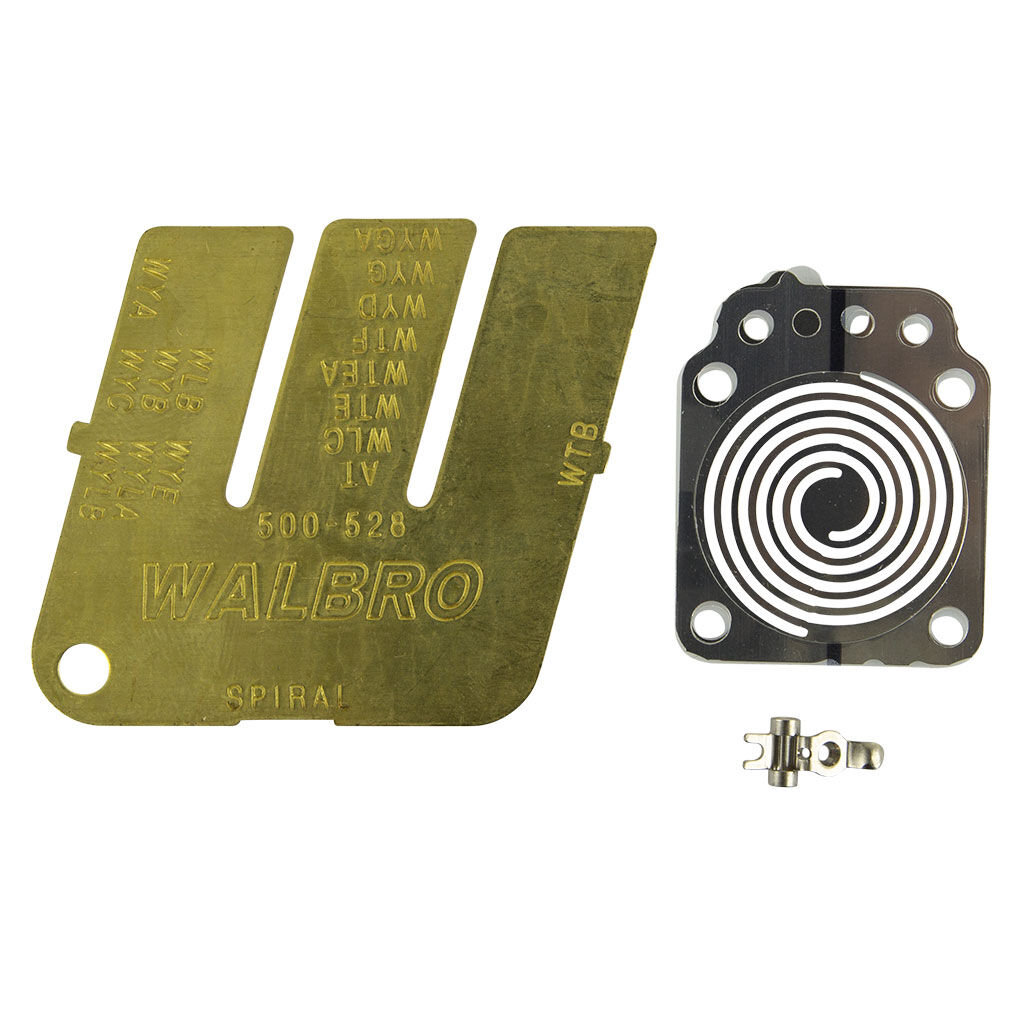

Walbro K1-wyta Spiral Diaphragm Upgrade Kit
Features
| kit - Spiral, Spiral Metering Diaphragm and Gasket Set, | |
| Product Line: | Diaphragm and Gasket Set, Gasket and Diaphragm Set, Metering Diaphragm and Gasket |
| Footnote: | When comparing this fitment application information to your carburettor model |
| please disregard all letters (A, B, C) and -1 that may be at the end of your | |
| carburetor model number. | |
| Brand: | Genuine Walbro, |
| torque the screws down normally. | |
| old metering lever pin. For a 5-pack version of this upgrade kit without the brass | |
| "W" gauge use our part number K6-WYTA . | |
| Note: | Fitting instructions - |
| 1. Remove metering cover, old diaphragm and gasket. | |
| 2. Remove the metering lever and replace with the new one supplied, reusing the old | |
| metering lever pin. | |
| 3. Reset the metering lever height using the updated version of the brass "W" gauge | |
| part number OMK500-528 which is included in this spiral diaphragm kit. The | |
| adjustment point on the brass gauge is on the bottom, the indentation you need to | |
| set the lever height is below the word "Spiral". | |
| 4. Install the new gaskets and diaphragm onto the carburettor while still contained | |
| inside the installation sleeve (Important - install onto the two metal pins, making | |
| sure that the word "TOP" printed on the installation sleeve is facing up). | |
| 5. Hold the installation sleeve with one hand and put the metering cover on over | |
| the top to hold it down. | |
| 6. Install the four screws and start them by just one turn each. | |
| 7. Then remove the clip off the end and pull the installation sleeve out, then | |
| it. The metering lever must be replaced with the new one supplied, please reuse the | |
| stainless steel spiral is more forgiving but care is still required when handling | |
| handle - DO NOT bend or crease the membrane when handling or during assembly! The | |
| Please Note: | Warning - These parts are extremely durable inside the carburettor but fragile to |
| Currently over 500 Walbro diaphragm carburettor model numbers can be upgraded to | |
| use the new spiral diaphragm kits. | |
| All parts (except the metering lever) are contained in a clever installation sleeve | |
| to make assembly quicker and easier (refer to notes below). | |
| Features: | A membrane with a high grade teflon film in the centre and a stainless steel spiral |
| diaphragm - impervious to the effects of Ethanol and other additives found in | |
| modern fuels. | |
| WT-931, WT-932-1, WT-933, WT-934-1, WT-935-1, WT-936-1, WT-937-1, WT-938, WT-941-1, | |
| WT-908-1, WT-909-1, WT-910-1, WT-912, WT-913, WT-914, WT-915-1, WT-916, WT-917-1, | |
| WT-918-1, WT-920, WT-921, WT-924-1, WT-925-1, WT-927-1, WT-928, WT-929-1, WT-930-1, | |
| WT-899-1, WT-900-1, WT-901-1, WT-902-1, WT-903, WT-904, WT-905-1, WT-906-1, WT-907, | |
| WT-876, WT-877, WT-878-1, WT-879-1, WT-880, WT-881, WT-885, WT-886, WT-887, WT-888, | |
| WT-889-1, WT-890, WT-891-1, WT-892, WT-893, WT-895-1, WT-896-1, WT-897-1, WT-898, | |
| WT-867, WT-868, WT-869-1, WT-870-1, WT-871, WT-872-1, WT-873-1, WT-874, WT-875-1, | |
| WT-850-1, WT-851, WT-852-1, WT-853-1, WT-854, WT-855-1, WT-856-1, WT-857-1, | |
| WT-858-1, WT-860-1, WT-861-1, WT-862-1, WT-863-1, WT-864-1, WT-865-1, WT-866-1, | |
| WT-839-1, WT-840-1, WT-841-1, WT-843-1, WT-844-1, WT-845-1, WT-846-1, WT-847-1, | |
| WT-830-1, WT-831-1, WT-832-1, WT-834-1, WT-835-1, WT-836-1, WT-837, WT-838-1, | |
| WT-799-1, WT-801-1, WT-802-1, WT-803-1, WT-804-1, WT-805-1, WT-807-1, WT-808-1, | |
| WT-818-1, WT-820-1, WT-823-1, WT-825-1, WT-826-1, WT-827-1, WT-828, WT-829-1, | |
| WT-809, WT-811-1, WT-812-1, WT-814-1, WT-815-1, WT-816-1, WT-817-1, WT-818-1, | |
| WT-791, WT-792-1, WT-793-1, WT-794-1, WT-795-1, WT-796-1, WT-797-1, WT-798-1, | |
| WT-783-1, WT-784-1, WT-785-1, WT-786-1, WT-787-1, WT-788-1, WT-789-1, WT-790, | |
| WT-755-1, WT-756-1, WT-757-1, WT-758-1, WT-759-1, WT-760-1, WT-761-1, WT-762-1, | |
| WT-777-1, WT-778-1, WT-779-1, WT-780-1, WT-781-1, WT-782-1, | |
| WT-763-1, WT-764-1, WT-766-1, WT-767, WT-769-1, WT-772-1, WT-774-1, WT-776-1, | |
| WT-747-1, WT-748-1, WT-749-1, WT-750-1, WT-751-1, WT-752-1, WT-753-1, WT-754-1, | |
| WT-732-1, WT-737-1, WT-738-1, WT-739-1, WT-742-1, WT-743-1, WT-745-1, WT-746-1, | |
| WT-722-1, WT-722-1, WT-725-1, WT-726-1, WT-727-1, WT-728-1, WT-729-1, WT-731-1, | |
| WT-712-1, WT-713-1, WT-716-1, WT-717-1, WT-718-1, WT-719, WT-720-1, WT-721-1, | |
| WT-686-1, WT-687-1, WT-724-1 WT-688-1, WT-689-1, WT-690-1, WT-691-1, WT-692-1, | |
| WT-702-1, WT-705-1, WT-706-1, WT-707-1, WT-708-1, WT-709-1, WT-710-1, WT-711-1, | |
| WT-693-1, WT-695-1, WT-695-1, WT-697-1, WT-698-1, WT-699-1, WT-700-1, WT-701-1, | |
| WT-675-1, WT-678-1, WT-679-1, WT-680-1, WT-681, WT-682-1, WT-684-1, WT-685-1, | |
| WT-665-1, WT-666-1, WT-667-1, WT-669-1, WT-670-1, WT-671-1, WT-673-1, WT-674-1, | |
| WT-652, WT-656-1, WT-657-1, WT-659, WT-660-1, WT-661-1, WT-662-1, WT-664-1, | |
| WT-640-1, WT-641-1, WT-642-1, WT-646-1, WT-647-1, WT-648-1, WT-649-1, WT-650-1, | |
| WT-619-1, | |
| WT-622-1, WT-624-1, WT-625-1, WT-626-1, WT-627-1, WT-628-1, WT-629-1, WT-630-1, | |
| WT-631-1, WT-632-1, WT-634-1, WT-635-1, WT-636-1, WT-637, WT-638-1, WT-639-1, | |
| WT-609-1, WT-610-1, WT-611, WT-612-1, WT-614-1, WT-616-1, WT-617-1, WT-618-1, | |
| WT-579-1, WT-580-1, WT-580-1, WT-582-1, WT-583-1, WT-584-1, WT-586-1, WT-587-1, | |
| WT-596-1, WT-597-1, WT-598-1, WT-599-1, WT-600-1, WT-602-1, WT-606-1, WT-607-1, | |
| WT-588-1, WT-589-1, WT-590-1, WT-591-1, WT-592-1, WT-593-1, WT-594-1, WT-595, | |
| WT-571-1, WT-572-1, WT-573-1, WT-574-1, WT-575-1, WT-576-1, WT-577-1, WT-578-1, | |
| WT-561-1, WT-562-1, WT-565-1, WT-566-1, WT-567-1, WT-568-1, WT-569-1, WT-570-1, | |
| WT-552-1, WT-553-1, WT-554, WT-555-1, WT-557-1, WT-558-1, WT-559-1, WT-560-1, | |
| WT-543-1, WT-544-1, WT-545-1, WT-547-1, WT-548-1, WT-549-1, WT-550-1, WT-551-1, | |
| WT-531-1, WT-534-1, WT-535, WT-536-1, WT-538-1, WT-539-1, WT-540-1, WT-542-1, | |
| WT-517-1, WT-518-1, WT-520-1, WT-525-1, WT-525-1, WT-527-1, WT-529-1, WT-530-1, | |
| WT-506-1, WT-508-1, WT-509-1, WT-511-1, WT-512-1, WT-513-1, WT-514-1, WT-516-1, | |
| WT-492-1, WT-494-1, WT-495-1, WT-497-1, WT-499-1, WT-500-1, WT-501-1, WT-504-1, | |
| WT-475-1, WT-477-1, WT-481-1, WT-483, WT-484-1, WT-486-1, WT-487-1, WT-489-1, | |
| WT-460-1, WT-462-1, WT-463-1, WT-465-1, WT-466-1, WT-467-1, WT-470-1, WT-472-1, | |
| WT-450-1, WT-451-1, WT-453-1, WT-454-1, WT-455-1, WT-456-1, WT-457-1, WT-458-1, | |
| WT-435, WT-436-1, WT-437-1, WT-438-1, WT-439-1, WT-441-1, WT-442-1, WT-446-1, | |
| WT-424-1, WT-426-1, WT-427-1, WT-428-1, WT-429-1, WT-430-1, WT-433-1, WT-434-1, | |
| WT-410-1, WT-411, WT-414-1, WT-415-1, WT-416-1, WT-417-1, WT-418-1, WT-421-1, | |
| WT-398-1, WT-399-1, WT-400-1, WT-402-1, WT-405-1, WT-406-1, WT-408-1, WT-408-1, | |
| WT-380-1, WT-383-1, WT-385-1, WT-387-1, WT-390-1, WT-391-1, WT-394, WT-395, | |
| WT-365-1, WT-366-1, WT-367-1, WT-368-1, WT-370-1, WT-372-1, WT-373-1, WT-378-1, | |
| WT-346-1, WT-347-1, WT-348-1, WT-349-1, WT-350-1, WT-354-1, WT-361-1, WT-363-1, | |
| WT-333-1, WT-337-1, WT-338-1, WT-339-1, WT-340-1, WT-341-1, WT-344-1, WT-345-1, | |
| WT-289-1, WT-290-1, WT-291-1, WT-294-1, WT-295-1, WT-297-1, WT-298-1, WT-300-1, | |
| WT-312-1, WT-315-1, WT-316, WT-322-1, WT-324-1, WT-327-1, WT-331-1, WT-332-1, | |
| WT-301-1, WT-302-1, WT-303-1, WT-305-1, WT-308-1, WT-309-1, WT-310-1, WT-311-1, | |
| WT-277-1, WT-279-1, WT-281-1, WT-282-1, WT-284-1, WT-286-1, WT-287-1, WT-288-1, | |
| WT-263-1, WT-266-1, WT-267-1, WT-272-1, WT-273-1, WT-274-1, WT-275-1, WT-276-1, | |
| WT-245-1, WT-246-1, WT-249-1, WT-250-1, WT-251-1, WT-257-1, WT-258-1, WT-260-1, | |
| WT-232-1, WT-233-1, WT-234-1, WT-235-1, WT-237-1, WT-238-1, WT-241-1, WT-242-1, | |
| WT-221-1, WT-223-1, WT-224-1, WT-225-1, WT-226-1, WT-229-1, WT-230-1, WT-231-1, | |
| WZ-49 carburettor models. Please refer to the notes below. | |
| WZ-40-1, WZ-41-1, WZ-42-1, WZ-43-1, WZ-44-1, WZ-45-1, WZ-46-1, WZ-47-1, WZ-48 and | |
| WZ-14-1, WZ-15-1, WZ-16, WZ-16-1, WZ-17-1, WZ-18-1, WZ-19-1, WZ-20-1, WZ-21-1, | |
| WZ-31-1, WZ-32, WZ-33-1, WZ-34-1, WZ-35-1, WZ-36-1, WZ-37-1, WZ-38-1, WZ-39-1, | |
| WZ-22-1, WZ-23-1, WZ-24-1, WZ-25-1, WZ-26-1, WZ-27-1, WZ-28-1, WZ-29-1, WZ-30-1, | |
| WT-1228, WT-1230, WT-1231, WT-1232, WT-1233, WT-1234, WT-1239, WT-1240, WT-189B, | |
| WT-76C, WTA-30-1, WTA-32-1, WTA-33-1, WTA-34, WTA-35-1, WTA-36, WZ-1, WZ-2, WZ-3-1, | |
| WZ-4-1, WZ-5-1, WZ-6-1, WZ-7-1, WZ-8-1, WZ-9-1, WZ-10-1, WZ-11-1, WZ-12-1, WZ-13-1, | |
| WT-1218, WT-1219, WT-1220, WT-1221, WT-1222, WT-1223-1, WT-1224, WT-1225-1, | |
| WT-1179-1, WT-1180-1, WT-1181, WT-1182, WT-1183, WT-1185, WT-1187-1, WT-1188, | |
| WT-1189, WT-1192-1, WT-1193, WT-1196, WT-1197, WT-1198, WT-1199, WT-1200, WT-1202, | |
| WT-1204, WT-1207, WT-1208, WT-1209-1, WT-1212-1, WT-1213-1, WT-1215-1, WT-1217, | |
| WT-1166, WT-1167, WT-1168-1, WT-1169, WT-1170-1, WT-1172, WT-1174, WT-1178, | |
| WT-1156-1, WT-1157, WT-1158, WT-1159-1, WT-1160-1, WT-1161, WT-1163-1, WT-1164-1, | |
| WT-1148-1, WT-1149-1, WT-1150-1, WT-1151-1, WT-1153-1, WT-1154-1, WT-1155-1, | |
| WT-1138-1, WT-1139-1, WT-1141-1, WT-1142, WT-1143-1, WT-1145-1, WT-1147-1, | |
| WT-1130-1, WT-1131-1, WT-1132-1, WT-1133-1, WT-1134, WT-1135, WT-1136, WT-1137, | |
| WT-1122, WT-1123-1, WT-1124, WT-1125-1, WT-1126, WT-1127, WT-1128, WT-1129-1, | |
| WT-1112, WT-1113, WT-1115, WT-1116-1, WT-1117, WT-1118, WT-1119, WT-1120, WT-1121, | |
| WT-1102-1, WT-1103, WT-1105, WT-1106, WT-1108-1, WT-1109-1, WT-1110-1, WT-1111-1, | |
| WT-1072-1, WT-1073, WT-1074, WT-1075, WT-1076, WT-1077, WT-1078, WT-1080, WT-1081, | |
| WT-1082, WT-1084-1, WT-1085-1, WT-1086-1, WT-1087, WT-1089-1, WT-1090, WT-1091-1, | |
| WT-1092-1, WT-1093-1, WT-1094, WT-1095, WT-1097, WT-1098, WT-1099-1, WT-1100, | |
| WT-1064A, WT-1065, WT-1066-1, WT-1067, WT-1068-1, WT-1069, WT-1070, WT-1071, | |
| WT-1055-1, WT-1056, WT-1057, WT-1058-1, WT-1059-1, WT-1061-1, WT-1062, WT-1063, | |
| WT-1046-1, WT-1047, WT-1048-1, WT-1049-1, WT-1050-1, WT-1051, WT-1053-1, WT-1054, | |
| WT-1036-1, WT-1037-1, WT-1038, WT-1039-1, WT-1041-1, WT-1042-1, WT-1043, WT-1045, | |
| WT-1017-1, WT-1018-1, WT-1019-1, WT-1020-1, WT-1021, WT-1022-1, WT-1023, WT-1024, | |
| WT-1025, WT-1026-1, WT-1027-1, WT-1028-1, WT-1030-1, WT-1031-1, WT-1034-1, | |
| WT-1009-1, WT-1010, WT-1011-1, WT-1012-1, WT-1013, WT-1014-1, WT-1015, WT-1016-1, | |
| WT-1000, WT-1001, WT-1002, WT-1003, WT-1004, WT-1006, WT-1007, WT-1008-1, | |
| WT-984-1, WT-985-1, WT-986, WT-991-1, WT-992-1, WT-993-1, WT-994, WT-996-1, WT-999, | |
| WT-975-1, WT-976, WT-977, WT-978, WT-979, WT-980-1, WT-981-1, WT-982, WT-983, | |
| WT-966, WT-967, WT-968-1, WT-969, WT-970-1, WT-971, WT-972, WT-973-1, WT-974, | |
| WT-956-1, WT-957, WT-958, WT-959, WT-960, WT-961, WT-962, WT-963, WT-964-1, WT-965, | |
| Fits: | WT-942-1, WT-943-1, WT-944-1, WT-946-1, WT-947, WT-948-1, WT-949, WT-951, WT-954, |
| Replaces OEM: | Walbro K1-WYTA |
| compliant spiral metering diaphragm. The new spiral metering diaphragm is | |
| impervious to the effects of Ethanol and additives in modern fuels and does not | |
| deteriorate with age. | |
| Gauge | |
| Editorial: | Walbro's patented spiral metering diaphragm upgrade kit allows you to convert your |
| carburettor from the traditional rubber metering diaphragm to Walbro's ethanol | |
| Description: | Genuine Walbro K1-WYTA Spiral Metering Diaphragm Upgrade Kit - Includes Brass "W" |
