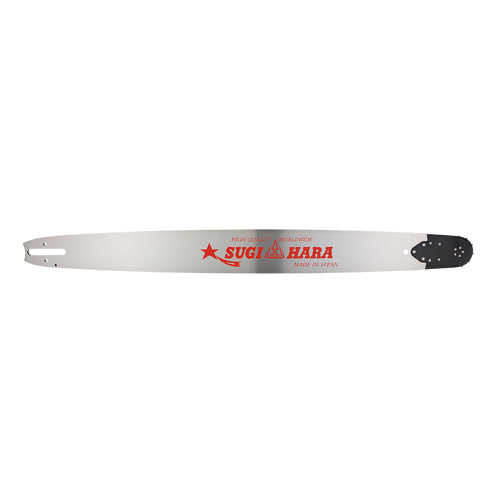

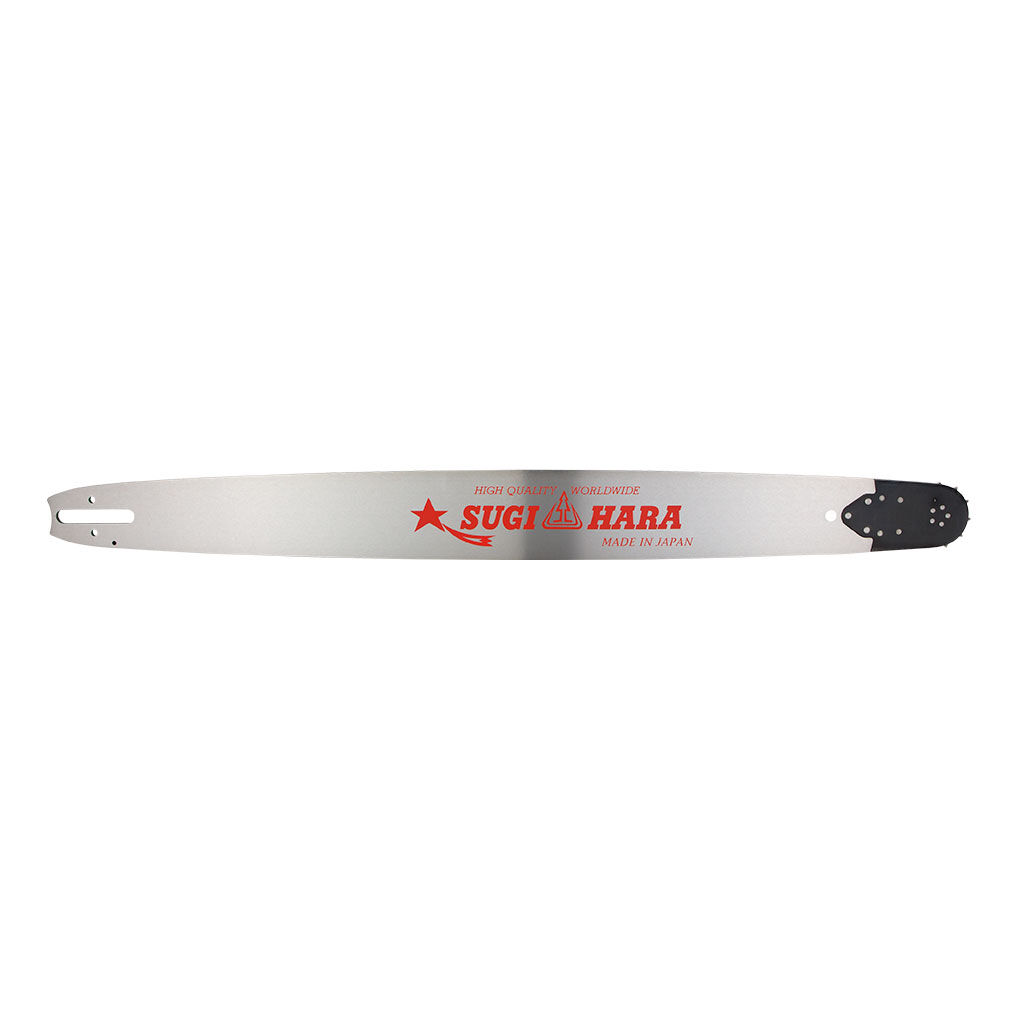

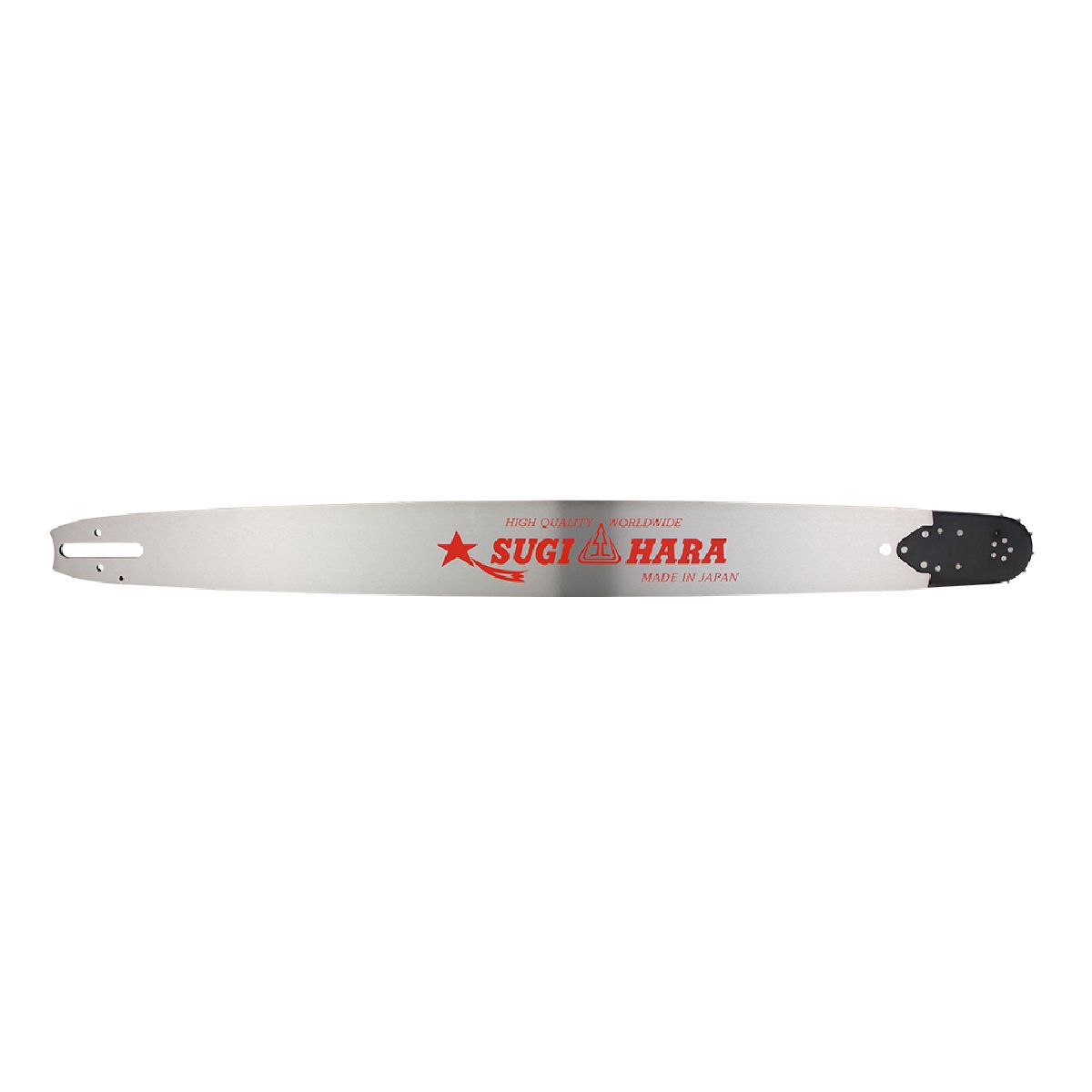

Prokut Platinum Sugi Hara Sprocket Nose Bar 30 #43 Cd
Brand: FORESTRY-G
SKU: GAFCD3043RSP

BOPE Price
$242.00
Availability: Available
Items listed as available may not be physically in store but
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
available at our suppliers warehouse.
Please call us to find out if this item is available in store now.
Prokut Platinum Sugi Hara Sprocket Nose Bar 30 #43 Cd
Features
| models were also released fitted with a .404" pitch chain. | |
| Note: Please check your saw carefully prior to ordering, some of the above saw | |
| MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models. | |
| MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M, | |
| 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440, | |
| E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS | |
| 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum, | |
| Fits: | STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041, |
| Recommended Saw Sizes: | 50 cc to 100 cc (3.0 to 6.0 cu. in.) |
| Drive Link Count: | 98 |
| Teeth: | 11 Tooth Sprocket Nose |
| Bar Mount Type: | CD |
| Gauge: | .063" |
| Chain / Cutter Type: | 43S / Semi-Chisel Or 43F / Full-Chisel |
| Bar Type: | PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar |
| Pitch: | 3/8" |
| Length: (cm): | 75 cm |
| Length: (in): | 30" |
| Sugihara - Diatop ST2T-3Q76-A | |
| Replaces OEM: | Oregon 303RNDD025 |
| All PROKUT guide bars are reversible for longer life. | |
| Made in Japan. | |
| PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale. | |
| wear and chipping. | |
| provides superior bar-body strength and tough rails with excellent resistance to | |
| Super tough steel, heat treated up to 4 times on different parts of the guide bar, | |
| body. | |
| ears. | |
| The long sprocket nose takes most of the abuse, and minimizes wear to the bars | |
| Nose fastens with three rivets, and is securely held by wide and strong overlapping | |
| Polished lacquered finish. | |
| High durability sprocket nose. | |
| stiffness characteristics. | |
| Manufactured from a single piece of steel, featuring superior durability and | |
| Editorial: | Professional premium quality, solid, replaceable sprocket nose guide bar. |
| Replaceable Sprocket Nose Guide Bar - Made In Japan | |
| Description: | PROKUT PLATINUM SUGIHARA 30" x 3/8" x .063 x 98 DL, CD Mount, Solid Professional |
| Standard Pack Quantity: | 1 |
| Note: | Replaces our part number OMK303RNDD025. |
| Please Note: | Use with our semi-chisel chain loop part number GAF43S098DL or our full-chisel |
| chain loop part number GAF43F098DL. | |
| For a standard PROKUT solid professional replaceable sprocket nose guide bar option | |
| use our part number GAFCD3043RS. | |
| Brand: | PROKUT PLATINUM SUGIHARA, GA Forestry Accessories |
| Product Line: | Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket |
| nose guide bar, |
